TRANSFORMERS

Distribution Transformer

Low profile down to 0.25” and planar geometries
Custom geometry cores
Upto 30 outputs
High efficiency & volumetric efficiency
High power output winding techniques
Wide switching frequency range 60Hz-100Khz

• Low Profile Audio Transformer catalog
• 60Hz High Dielectric Isolation Transformer catalog
• 60Hz Low Profile Transformer catalog
• 400Hz Low Profile Miniature Transformer catalog

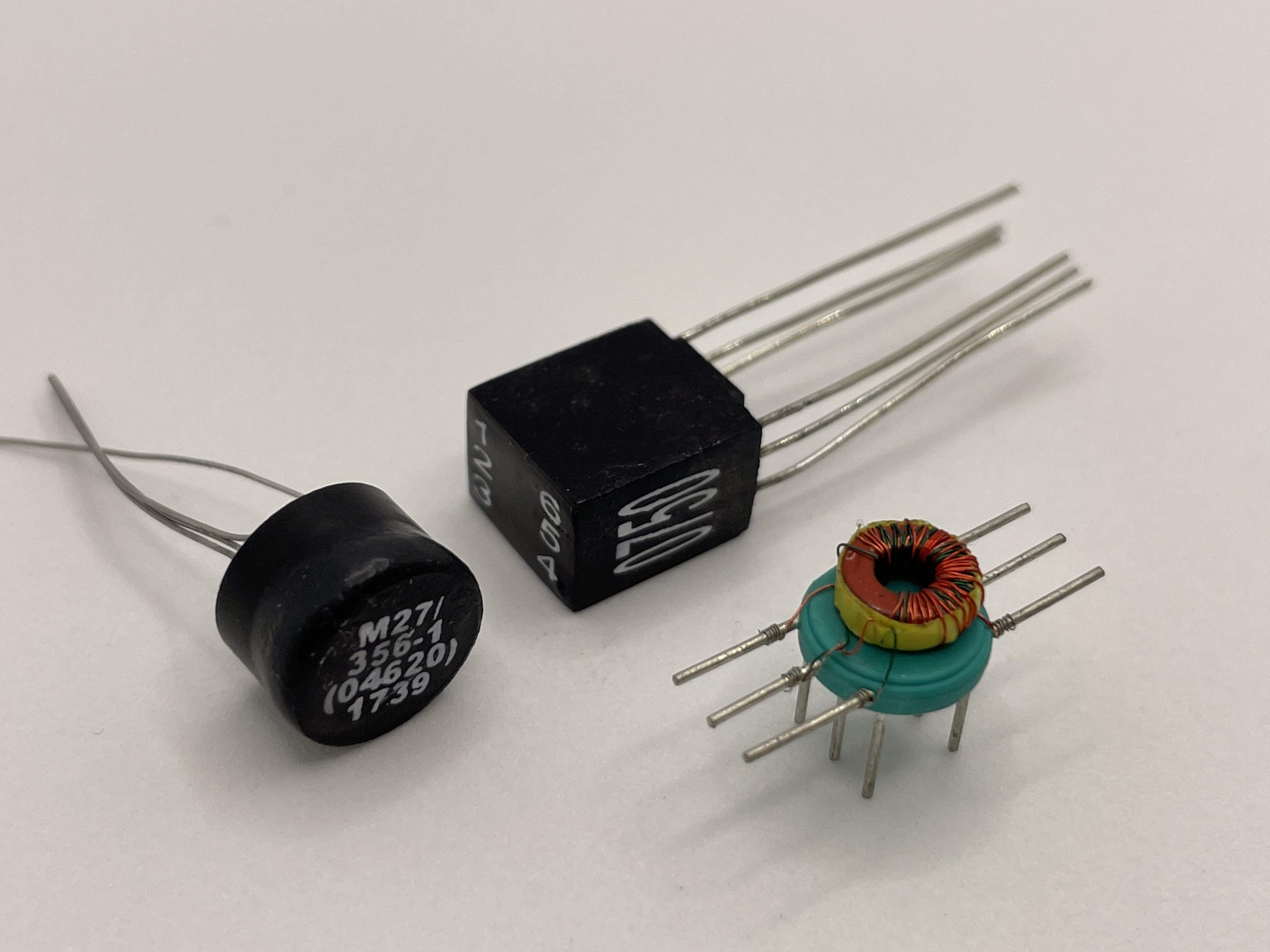

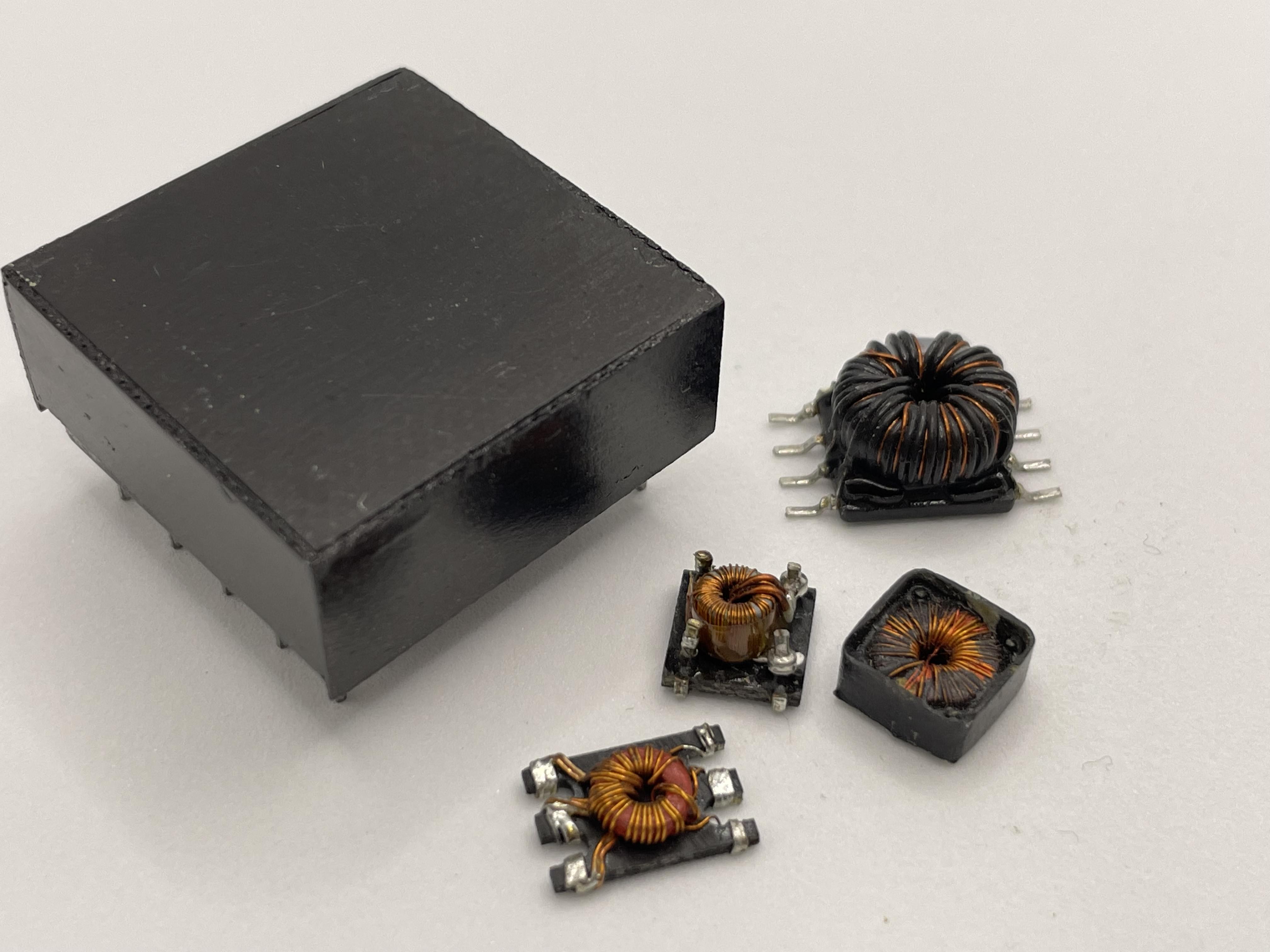

Gate Drive Transformer

Low profile down to 80mils (2mm)
Custom geometry cores
Can build to all power supply topologies and ICs
High efficiency & volumetric efficiency
Wide switching frequency range 10KHz-1MHz
Mechanical packaging for severe MIL shock and vibration requirements
Temperature rating –65C to 180C

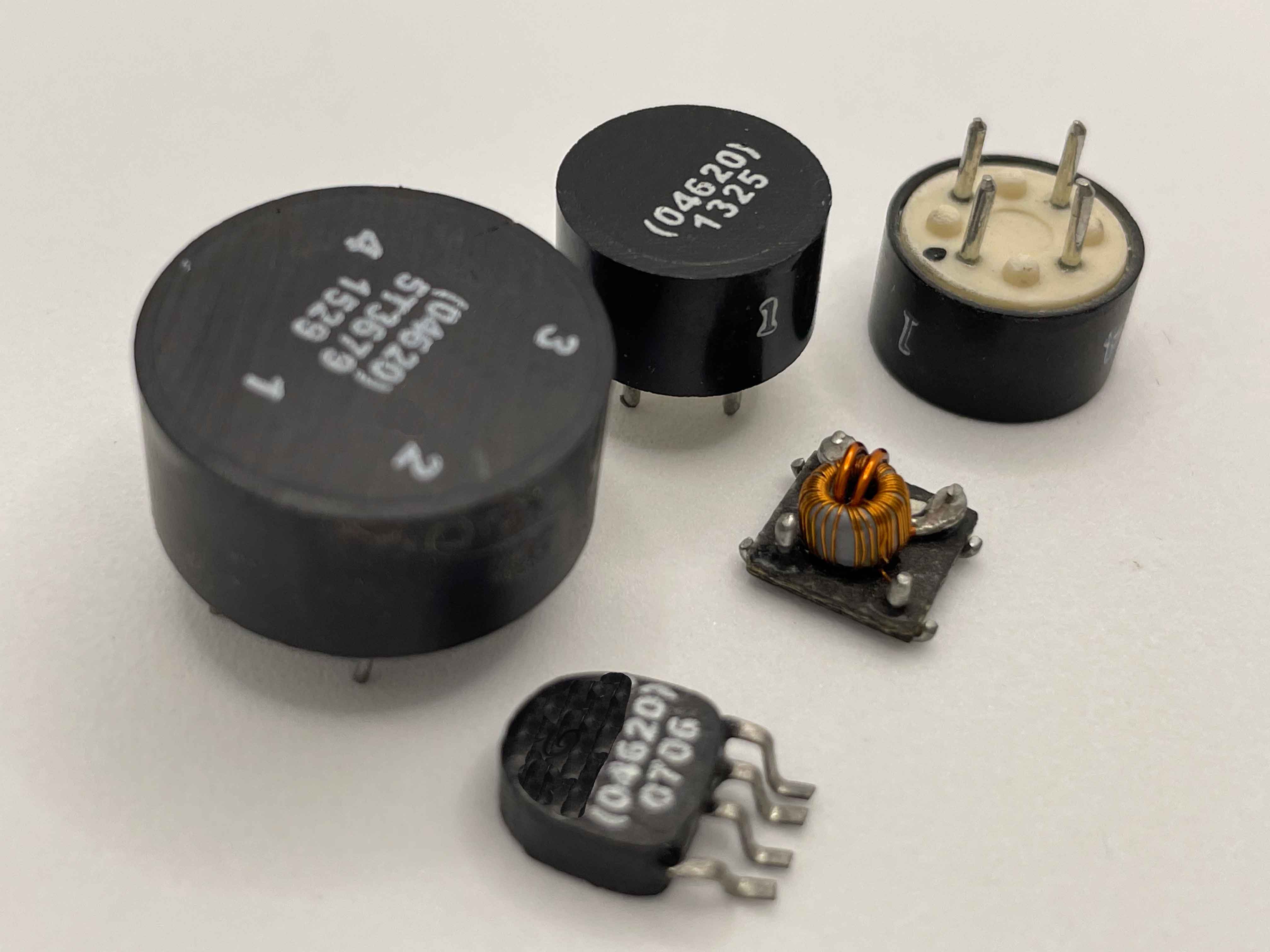

Current Sense Transformer

Low profile down to 0.125” and planar geometries
Custom geometry cores
Sensing accuracy to 0.1%
Current Sensing upto 1000 Amps
Can build to all power supply topologies
High efficiency & volumetric efficiency
Wide switching frequency range 60Hz-1MHz
Mechanical packaging for severe MIL shock and vibration requirements
Temperature rating –65C to 180C

• 50 to 300 Turns Miniature Current Sense Transforme

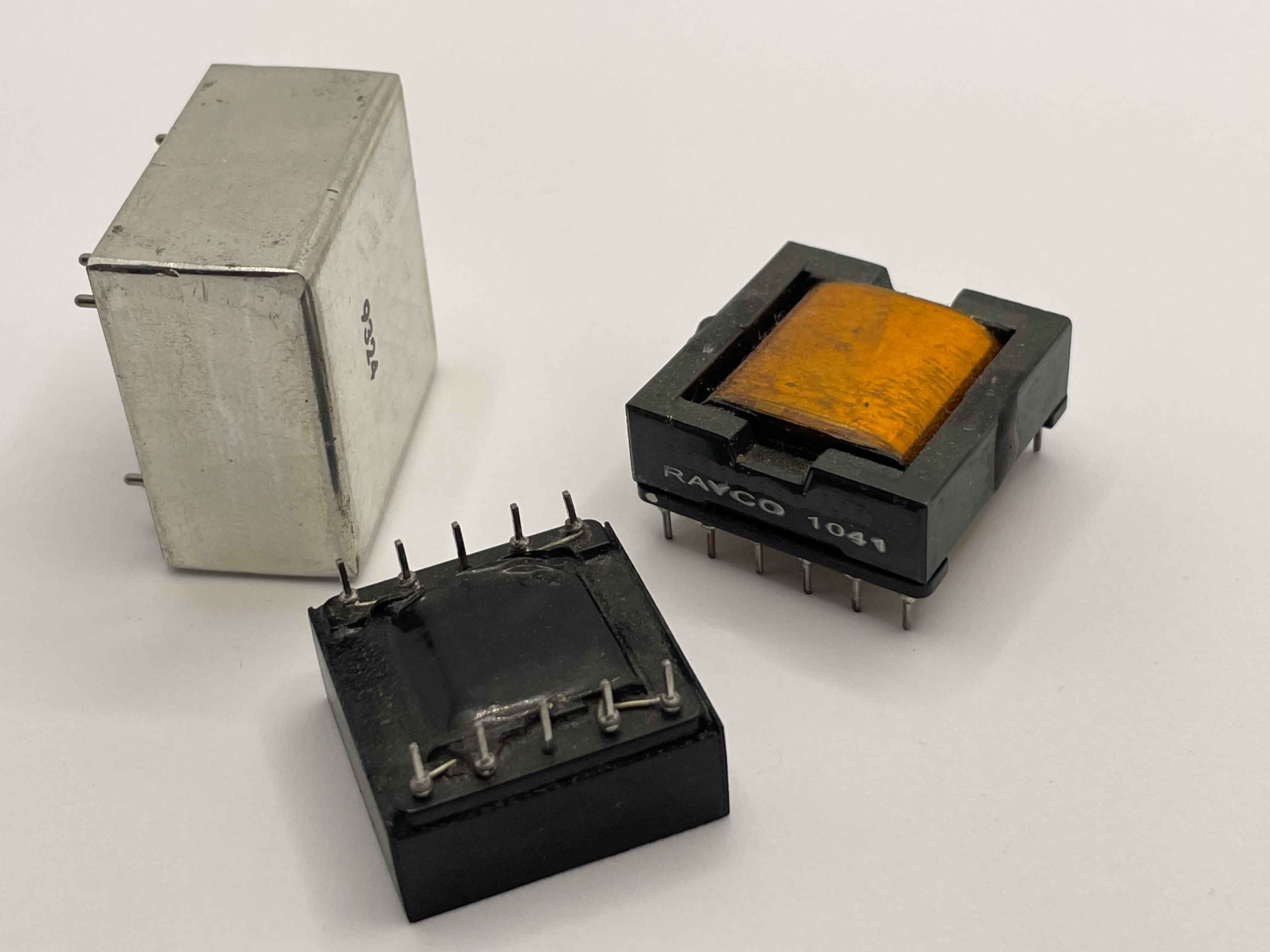

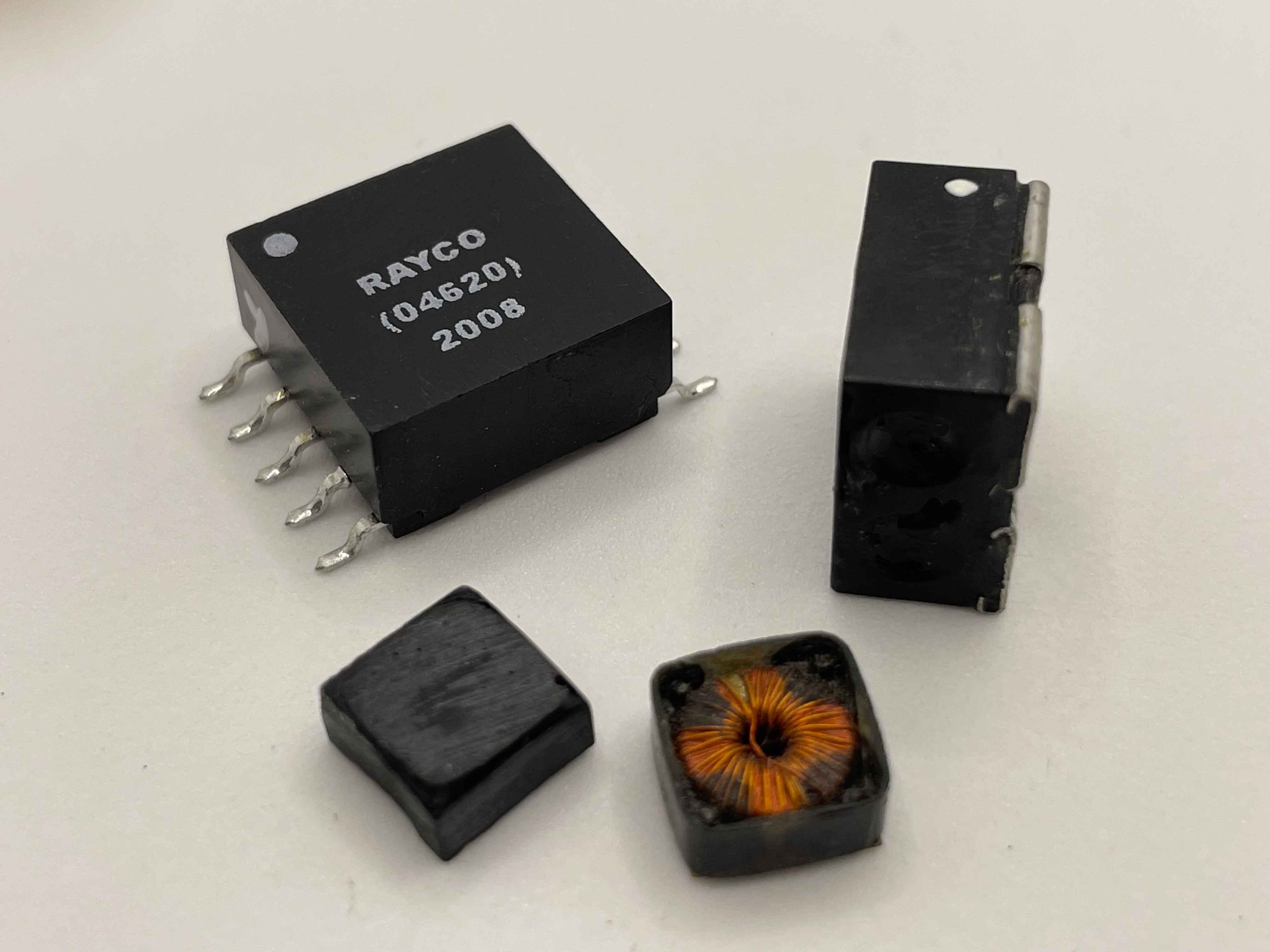

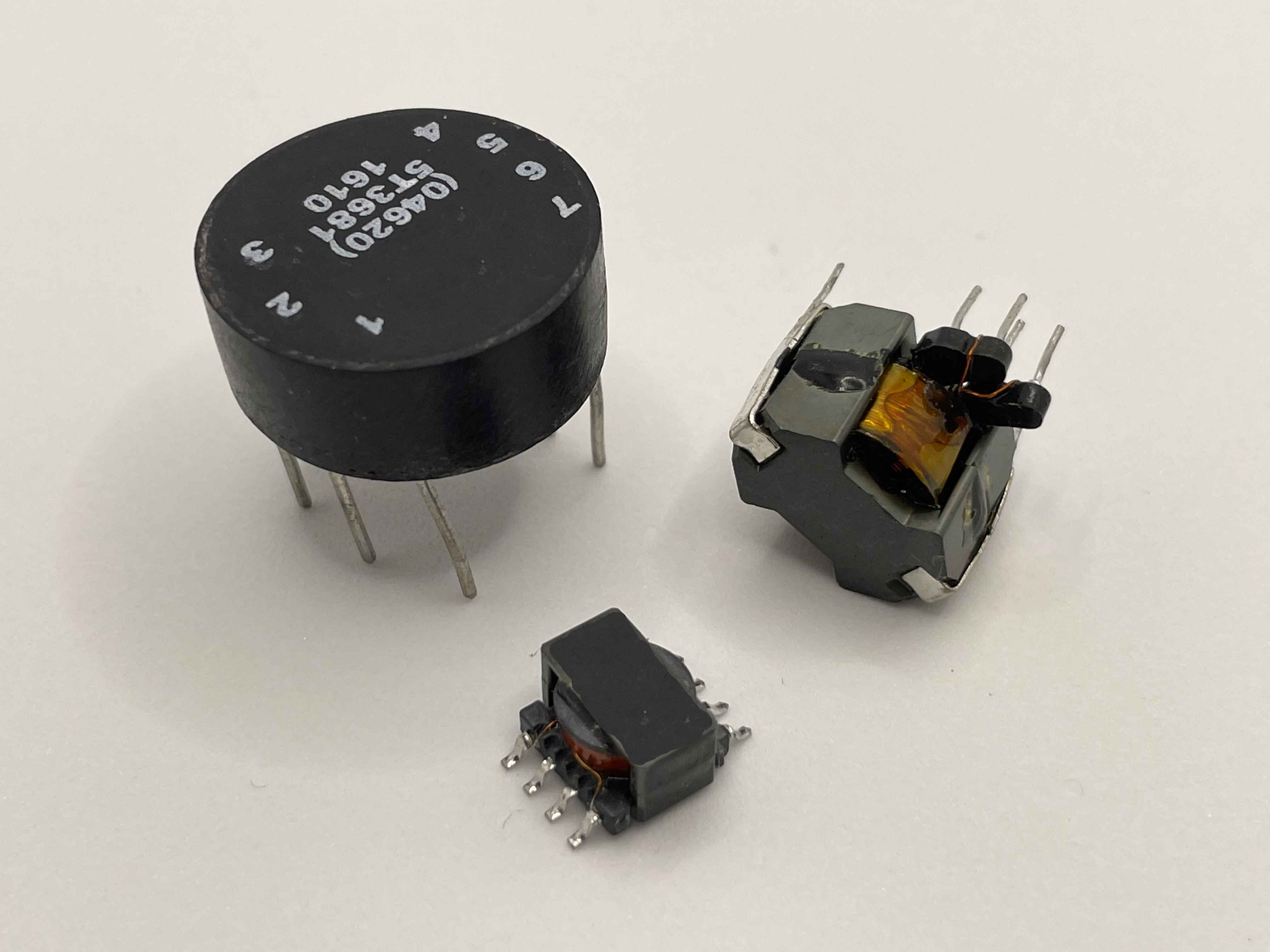

Flyback Transformer

Low profile down to 0.125” and planar geometries
Custom geometry cores
Can build to all power supply topologies
High Voltage flybacks upto 5kV
High efficiency & volumetric efficiency
High power output winding techniques
Wide switching frequency range 20KHz-700KHz
Mechanical packaging for severe MIL shock and vibration requirements
Temperature rating –65C to 180C

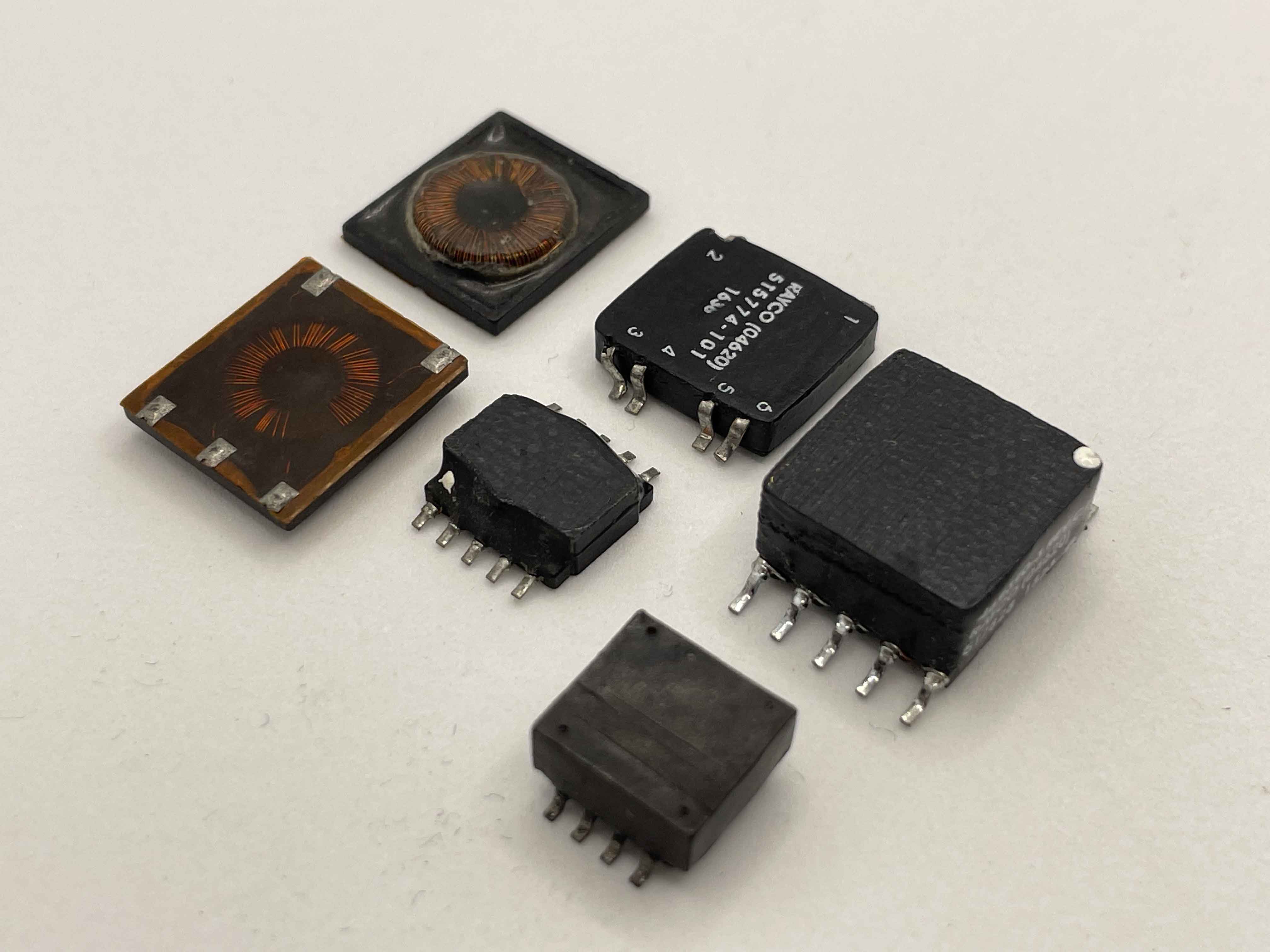

Forword Transformer

Low profile down to 0.125” and planar geometries
Custom geometry cores
Can build to all power supply topologies
High efficiency & volumetric efficiency
High power output winding techniques
Wide switching frequency range 10KHz-1MHz
Mechanical packaging for severe MIL shock and vibration requirements
Temperature rating –65C to 180C

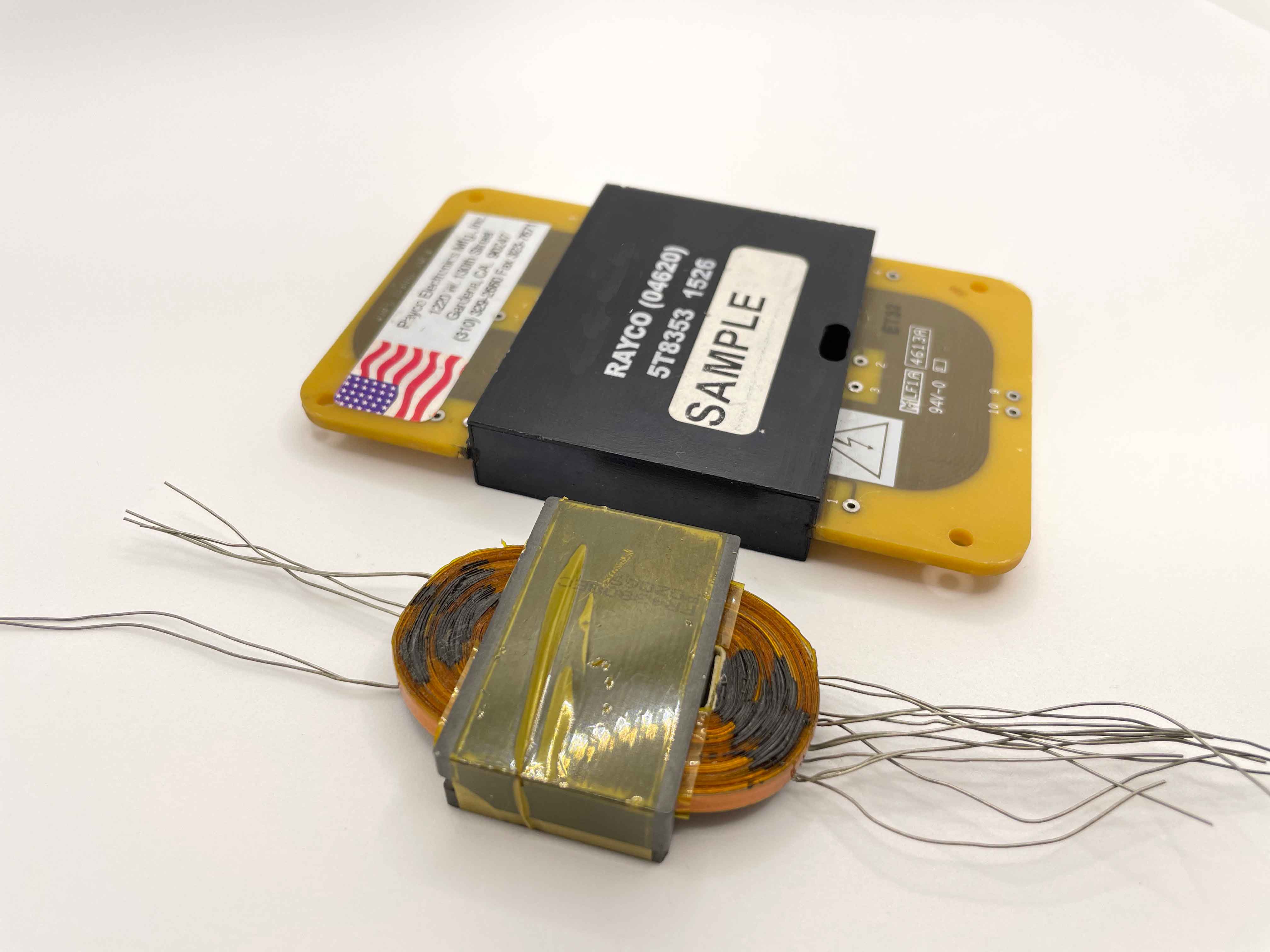

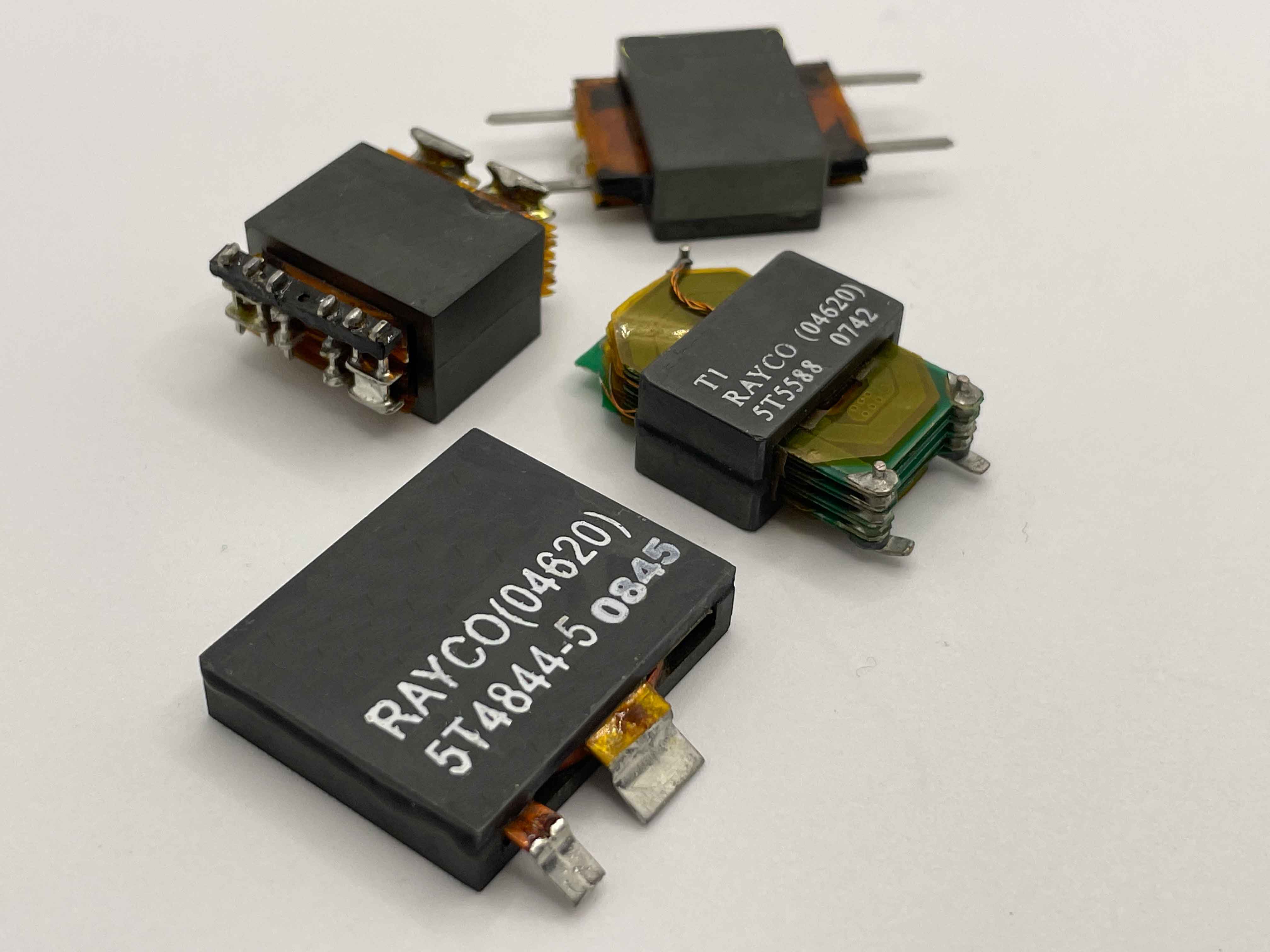

Planar Transformer
